DRICORE® Products

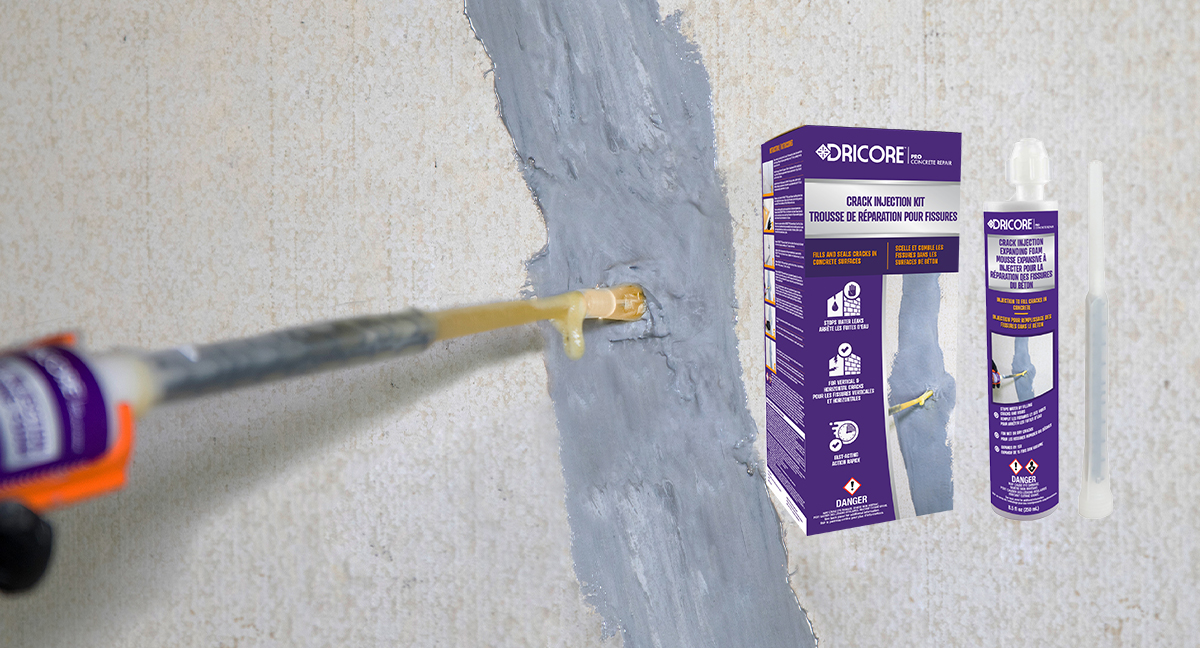

DRICORE offers a full range of subfloors, insulated panels, wall systems, underlayments, and concrete-repair kits designed to keep basements warmer, drier, and easier to finish
Which Subfloor Is Right For You
Subfloor or Underlayment
|
|
|
|
|
|
|---|---|---|---|---|
| Floor Temperature | Up to 6°C/10°F Warmer | Up to 7°C/14°F Warmer | Up to 10°C/19°F Warmer | Up to 10°C/19°F Warmer |
| R-Value | 0.9¹ | 1.4 | 2.7 | 4.1 |
| Weight Supported (per sq. ft.) | 6,600 lbs. (2,994 kg) | 6,642 lbs. (3,012 kg) | 3,153 lbs. (1,430 kg) | 3,650 lbs. (1,659 kg) |
| Air Flow | Yes | Yes | Yes | Yes |
| Top | HDPE | OSB | OSB | EPS Foam |
| Bottom | PET | High Density Plastic | EPS Foam | EPS Foam |
| Size | 39.2" x 25.6' (99.5 cm x 780 cm) | 23.25" x 23.25" x 0.75" (59 cm x 59 cm x 1.9 cm) | 23.25" x 23.25" x 1" (59 cm x 59 cm x 2.5 cm) | 47.25" x 23.25" x 1" (120 cm x 59 cm x 2.5 cm) |
| Height | 0.28" (0.7 cm) | 0.75" (1.9 cm) | 1" (2.5 cm) | 1" (2.5 cm) |
| Finished Flooring Options | Free-floating Engineered Hardwood, Laminate and Vinyl Plank (LVT/LVP) Flooring² | Laminate, Engineered Hardwood, Carpet, Vinyl, Tile, Stone Plastic Composite | Laminate, Engineered Hardwood, Carpet, Vinyl, Tile, Stone Plastic Composite | Laminate, Engineered Hardwood, Luxury-Vinyl³ (LVT/LVP) ≥5mm, Stone Plastic Composite |
| Warranty | 25 Year | 25 Year | 25 Year | 25 Year |
*Tested by an independent lab. ¹Based on modified ASTM C518-17 testing with LVT. The test result was 0.879 and has been rounded up to 0.9 for reference. ²For use with laminate and vinyl plank (LVT/LVP) flooring with a click-lock system (5 mm core or greater) and free-floating engineered hardwood flooring (12 mm core or greater). ³ LVT (Luxury Vinyl Tile) that is equal to or greater than 5 mm in thickness and has a clock-lock edge profile.
Ensure the concrete subfloor is properly levelled before installation. Always check with manufacturer for below grade installation of hardwood.DRICORE® Subfloor R+ and DRICORE® Insul-Armor® are only available online and in-store at select stores.
